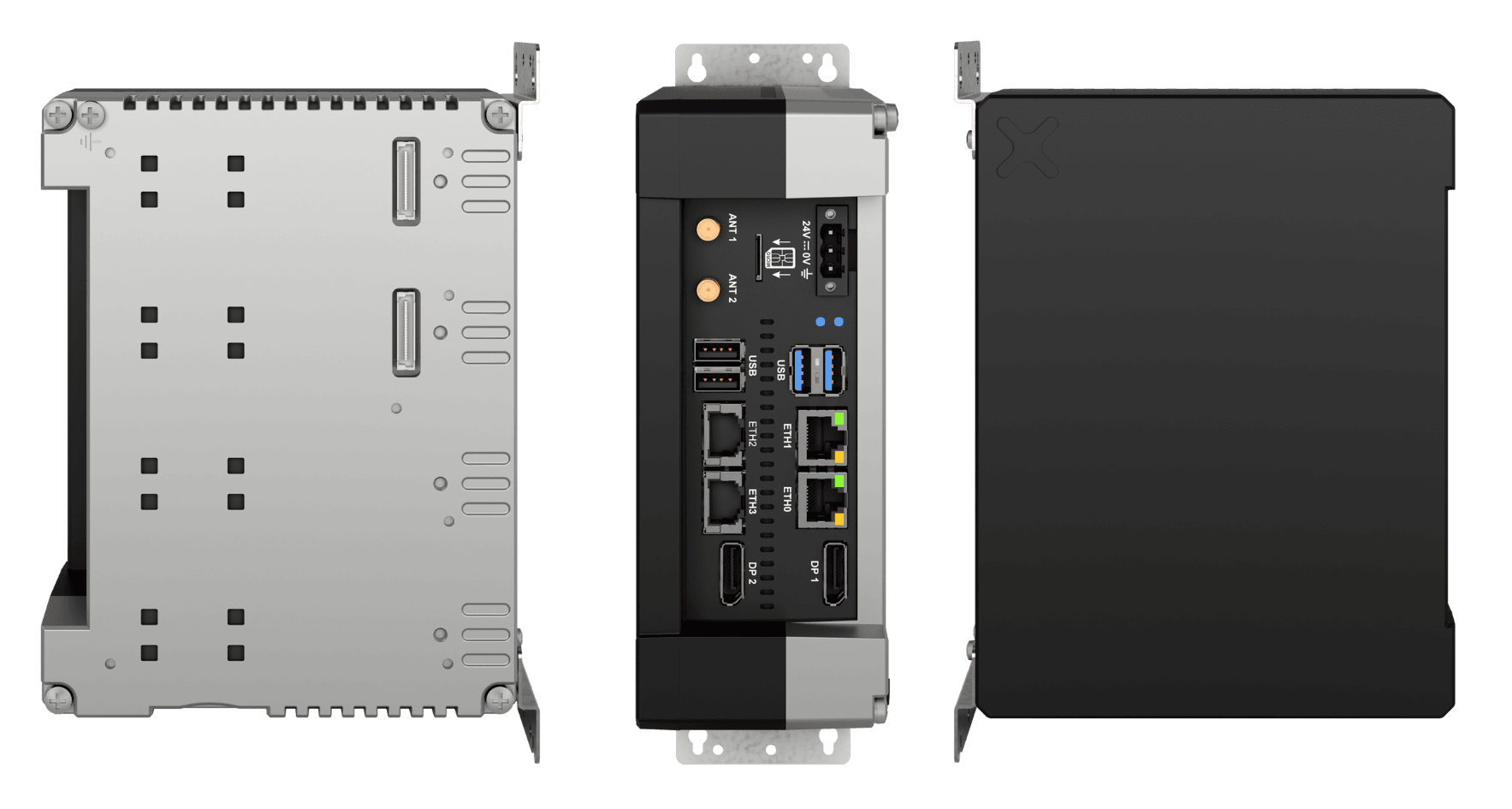

Xedge Expanded

L’Xedge Expanded è un box IPC versatile per applicazioni industriali avanzate, con elevate prestazioni, ampia connettività e architettura espandibile per l’edge computing.

Xedge Expanded

Panoramica

L’Xedge Expanded è progettato per OEM e system integrator che necessitano di un computer industriale potente e flessibile. Dotato di processore Intel® x6000E Series (fino a 1,9 GHz), fino a 16 GB di RAM LPDDR4x e 64 GB di memoria eMMC (espandibile con SSD M.2 SATA fino a 1 TB), offre potenza di calcolo e versatilità per eseguire in tempo reale applicazioni complesse. L’integrazione del TPM 2.0 garantisce massima sicurezza per dati e operazioni mission-critical.

Con due uscite DisplayPort 1.2, quattro porte Ethernet (due a 1 GbE e due a 2,5 GbE), più porte USB e due slot di espansione hardware-ready, l’Xedge Expanded offre una piattaforma altamente connessa e scalabile. I moduli opzionali Wi-Fi 6 e LTE ne ampliano le capacità di comunicazione per l’integrazione IIoT e l’accesso remoto.

Progettato per l’affidabilità industriale, funziona da -20°C a +55°C (montaggio verticale) ed è protetto contro inversione di polarità e sovratensioni. Il formato compatto 140,2 × 202,5 mm, con montaggio a parete o su guida DIN, facilita l’integrazione nei quadri di controllo. Grazie alle alte prestazioni di calcolo, alle opzioni di espansione e alla struttura robusta, l’Xedge Expanded è la piattaforma ideale per le soluzioni di edge computing industriale di nuova generazione.

Scegli la versione che più si adatta alle tue esigenze

Xedge Expanded

Funzioni principali

  • 2 porte Ethernet 1.0 GbE
  • 2 porte Ethernet 2.5 GbE
  • 2 porte USB 3.1 Gen 1
  • 2 porte USB 2.0
  • 2 DisplayPort
  • Grado di protezione IP20
  • Temperatura operativa: -20°C / +55°C
  • 2 slot di espansione per moduli aggiuntivi
  • JMobile Runtime (opzionale)
  • Sistema operativo Linux o Windows (opzionale)

Accessori

Scegli il prodotto giusto per te

Dati Tecnici


System Resources
CPUIntel x6000E Series, up to 1.9 GHz
Operating SystemNone, Windows, Linux RT
Flash Storage64 GB eMMC
RAMLPDDR4x up to 16GB
FRAM64 KB
Real time Clock, RTC Back-upYes, VL2330 Lithium battery
BuzzerYes
Leds2 bi-colors
SecurityTPM 2.0
Interface
Display I/O2 Display port 1.2
Ethernet port2 1.0 GbE, 2 2.5 GbE
USB port2 USB 3.1 gen.1, 2 USB 2.0
StorageUp to 1 TB M.2 SATA SSD
Wi-Fi1 Wi-Fi 6 (optional)
Cellular1 LTE (optional)
Expansion2 slots (hw-ready for standard plug-in modules)
Ratings
Power supply24 Vdc (10 to 32 Vdc)
Current Consumption2.5 A max. with expansion modules (full load), Class 2
Input protectionAnti-inversion, Overvoltage, Resettable Fuse
Environment Conditions
Operating Temperature-20°C to +55°C (vertical mounting)
Storage Temperature-20°C to +70°C
Operating/Storage Humidity5-85% RH, non condensing
Protection classIP20
Dimensions and Weights
Faceplate LxH140.2x202.5 mm (5.52’’x7.97’’)
Depth C73 mm (2.87’’)
Weight1.4Kg
Mounting TypeWall mouting / DIN rail TS35 (optional)
Approvals
CERadio Equipment Directive 2014/53/EU (RED)
FCCFCC Part 15 Subpart B Class A / FCC Part 15 Subpart C Class A
ICICES-003 ISSUE 7 CLASS A / IC RSS-247 Issue 3 and RSS-Gen Issue 5
ULUL61010-1 / UL61010-2-201

Validated technical specifications of our products are exclusively available in PDF documents named "Datasheet," which can be downloaded from the product page on our website.

Informazioni Ordine

Part Number and Description
Xedge Extended target="_blank">Choose your Version Industrial PC, Intel Atom® x6000E Series, Dual or Quad Core up to 1.9 GHz, DIN or wall mounting


Validated technical specifications of our products are exclusively available in PDF documents named "Datasheet," which can be downloaded from the product page on our website.
