What to know
Exor JMobile and Designer products line includes the possibilty to have an CODESYS v2 integrated PLC on the operator panel.
A specific Target Support Package, containing the needed informations regarding the device to be programmed, is required to allow the standard CODESYS v2 workbench to programme Exor Codesys based PLCs.
This document explains where to find and how to install the Exor Target Support Packages, mentioned as TSP from now on.
What to do
Download of CODESYS suite and Exor TSP package
The CODESYS v2 software suite can be downloaded for free from the Codesys website at the following address:
The download of the package is possible after a free registration to the Codesys website.
The Exor TSP files required to support the Jmobile eTOP400, eTOP500 and eTOP600 series operator panels and the SCMxx hardware modules are available for download from the http://www.exorint.net/ web site in the Support area.
The TSP files can be downloaded from this link:
The TSP are provided as a zip file that can be un-zipped in any directory respecting the internal folder structure.
Installation of the TSP

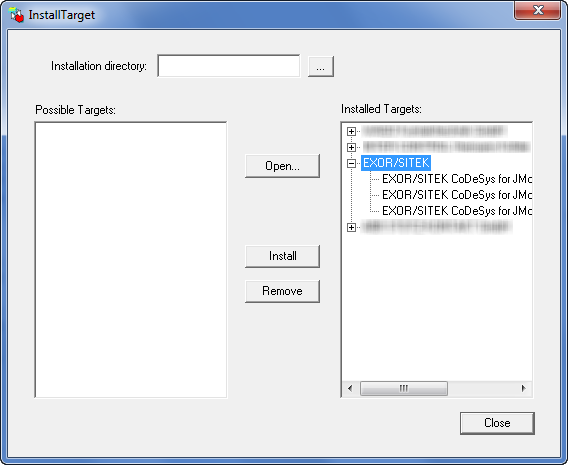

The CoDeSys suite includes a tool for Target installation called Install Target, this tool can be used both for checking the installed TSP and for installing new ones.
The Install Target tool can be found in the CoDeSys program group that you will find in the Start Menu after the installation of the software.
To install the SCM Target Support Package just click Open and locate in the hard disk the file with extension .tnf that was supplied within the TSP package. The recognized TSP will be listed in the Possible Targets
Select the TSP from the Possible Targets space then click on the Install button to complete the installation. Once installed the TSP will be listed into the Installed Targets space.
Below a list of Exor Targets included into the available TSP
SCM03-C module
EXOR/SITEK CoDeSys for SCM03 (eCos/Mips)
SCM11-C, SCM12-C and SCM05-C modules
EXOR/SITEK CoDeSys for SCM1x and SCM05 (eCos/Mips)
eTOP400 serie operator panels
EXOR/SITEK CoDeSys for JMobileWCE (WCE/MIPS)
eTOP500 and eTOP600 serie operator panels with UN31 600MhZ ARM Cpu
EXOR/SITEK CoDeSys for JMobileWCE (WCE/ARM UN31)
eTOP500 and eTOP600 serie operator panels with UN30 1GhZ ARM Cpu
EXOR/SITEK CoDeSys for JMobileWCE (WCE/ARM UN30)
Applies to
CODESYS v2 programming suite
Jmobile eTOP400, eTOP500 and eTOP600 series operator panels
UniOP optional CODESYS v2 iPLC modules for Designer serie panels SCM03, SCM05, SCM11 and SCM12
