IPC2411-C11

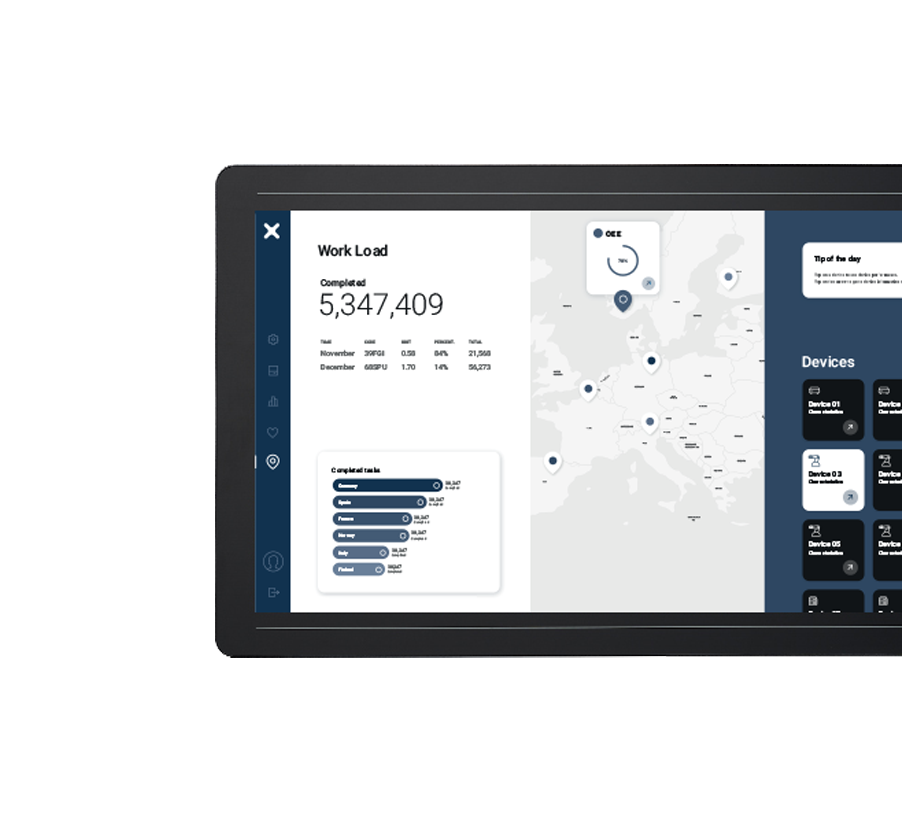

The new 23.8” fanless panel PC, IPC2411-C11, features a powerful 10th Gen Intel® Core™ i9/i7/i5/i3 processor, making it suitable for various industrial applications. It has a narrow border touch screen and a LED backlight LCD panel with a 1920x1080 (FHD) resolution.

IPC2411-C11

Overview

The front panel is designed with a flush, narrow border and meets IP standards, ensuring it fits perfectly in industrial settings.

The IPC2411-C11 includes dual Gigabit Ethernet ports, a mini-PCIe slot, and an M.2 slot to support LAN, WLAN, and 5G WWAN networks. It also supports a second display via DP++ for dual independent displays, features an adjustable RS-232/422/485 port with isolation, and offers a PCIe x4 slot for additional card expansion.

Key features

  • Support 35W 10th Gen Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® processor (Comet Lake-S)
  • Stylish slim bezel, metal housing with robust aluminum front zero bezel for harsh environment
  • 10 points P-Cap touch with zero bezel flush front design
  • 2 x DDR4 2933MHz memory, up to 32GB (non-ECC)
  • Dual Intel® GbE LAN ports/DP++/dual USB 3.0
  • 1 x RS-232,1 x RS-232/422/485 with isolation (optional)
  • Internal support: 1 x Mini PCIe (PCIe x1, USB 2.0, SATA), 1 x M.2 3042/3052 Key B (PCIe x1, USB 3.0, USB 2.0), 1 x M.2 2242 Key B (USB 2.0, SATA)
  • 24VDC input; supports AT/ATX power mode
  • 1 x PCIe x4 expansion

Choose your product

Ordering Information


Part Number and Description
IPC2411-C11 Contact Your Local Sales

Validated technical specifications of our products are exclusively available in PDF documents named "Datasheet," which can be downloaded from the product page on our website.
