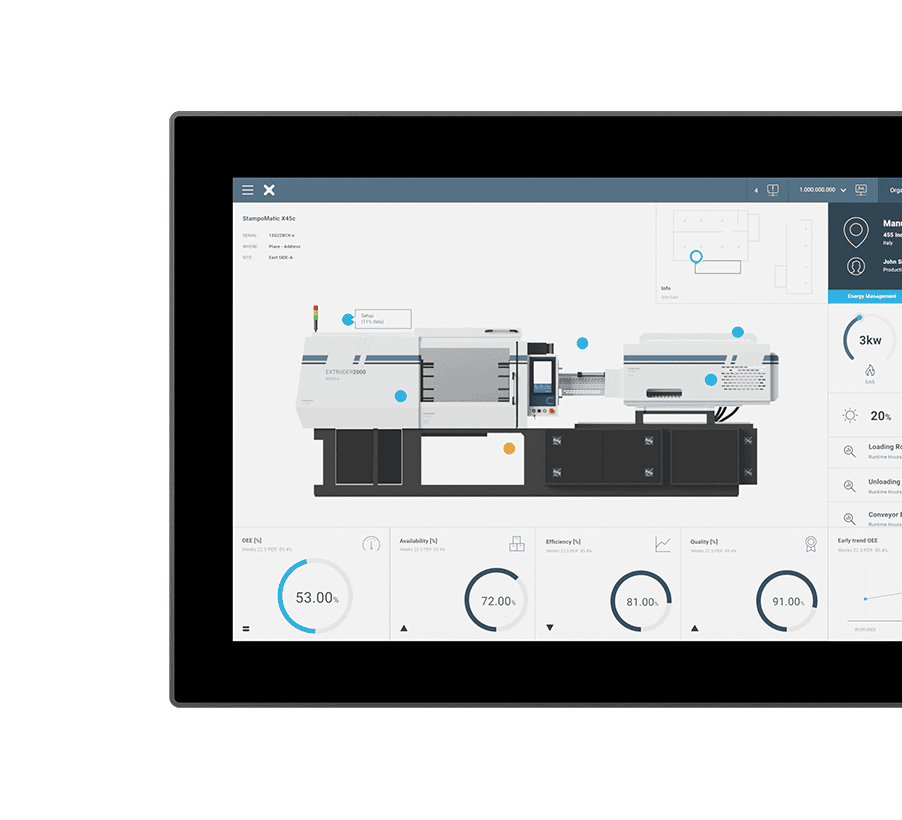

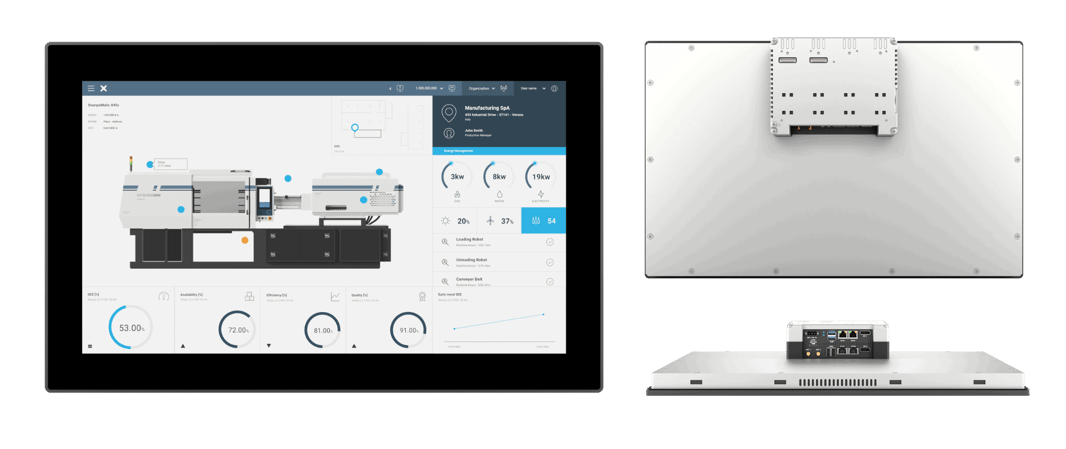

Xedge21
FUTURE PRODUCTIndustrial Edge AI device with display and touchscreen. Xedge Series products combine state-of-the-art connectivity features and top performance in a great design. Ideal for computation-intensive edge applications where Corvina Edge Field Analytic and Machine Learning are requirements, as well as factory orchestration of microservice architecture, virtualized edge logic (PLC) and edge visualization.
Ask Information
Products have been designed as IoT edge devices with the combination of a powerful controller with networking capability and outstanding communication options including client/server OPC UA. They are the ideal choice for all demanding IoT edge applications in factory, marine and building automation.
- Edge AI Computing
- 21” TFT Capacitive Multitouch
- DP++ Video Output (2 Optional)
- Intel Atom® x6000E Series up to 1,90 GHz Quad Core
- 2 Ports Gigabit Ethernet, optional up to 6 Gigabit Ethernet
- 2 USB 3.1 gen 1 ports, optional 2 USB 2.0 ports
- 3 Plug-in modules for system expansion
- Virtualization / Docker Container
- Intel® UHD Graphics, up to 500 Mhz base frequency, up to 800 Mhz burst frequency 16 execution unit
- Vision and AI FPGA accelerator
- Fanless passive cooling design - Alluminiun housing
The glass projected capacitive touchscreen and the brilliant 21” widescreen display guarantee great optical performance; with the support of multitouch gesture programming they can create the most natural human interfaces. Xedge Series products have been designed to run the JMobile software.
- JMobile runtime included
- Supports Corvina Platform secure connectivity with full network separation
- OPC UA Server and Client
- Optional CODESYS V3 runtime with choice of EtherCAT, Profinet, Ethernet IP and Powerlink
- Optional Support AI Accelerator Version
