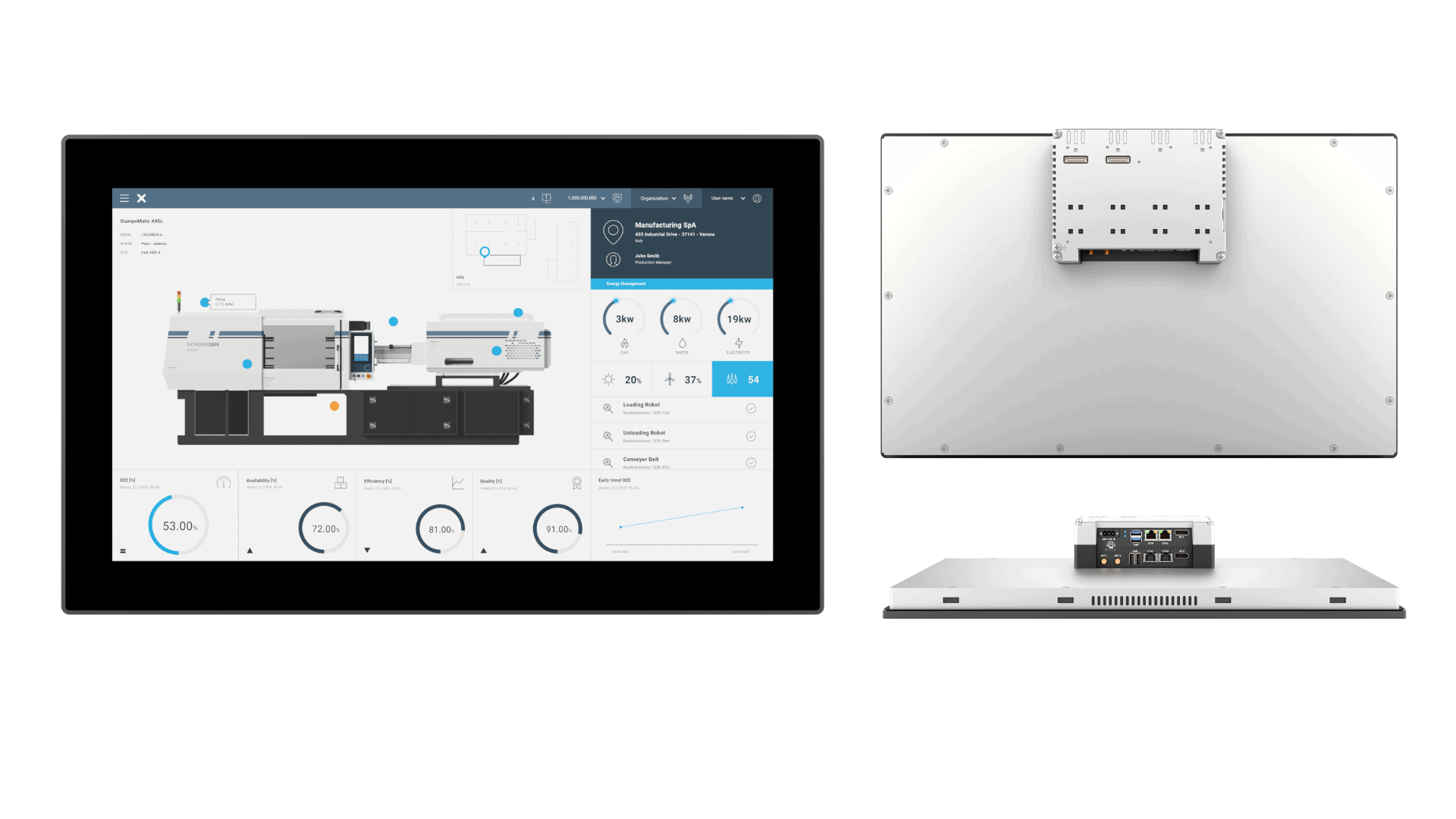

Xedge21

The Xedge21 is a high-performance 21.5" industrial panel PC designed for advanced edge computing, featuring a large Full HD multitouch display, powerful processing, and robust industrial-grade construction.

Xedge21

Overview

The Xedge21 combines a generous 21.5" Full HD TFT display with the computing power of the Intel® x6000E Series processor (up to 1.9 GHz), delivering a powerful and intuitive interface for complex industrial applications. With up to 16 GB LPDDR4x RAM, 64 GB eMMC flash storage, and optional M.2 SSD expansion up to 1 TB, it provides the performance and flexibility required for demanding edge computing environments. The inclusion of a Trusted Platform Module (TPM 2.0) ensures enhanced security for mission-critical operations and data protection.

Its projected capacitive (PCAP) multitouch technology supports fast, precise, and responsive operation, while the 300 cd/m² brightness with dimming capability ensures excellent readability under various lighting conditions. Multiple connectivity options - including dual Display Port outputs, four Ethernet ports (two 1 GbE and two 2.5 GbE), and a combination of USB 3.1 Gen 1 and USB 2.0 — make integration into existing automation systems straightforward and highly adaptable. Optional Wi-Fi 6 and LTE modules extend the device’s connectivity for IIoT and remote applications.

Built to operate reliably in industrial settings, the Xedge21 can withstand temperatures from -20°C to +55°C (vertical mounting) and offers protection against voltage inversion and surges. The robust design, combined with flexible panel-mount installation, makes it ideal for applications ranging from machine control to real-time monitoring dashboards and IIoT gateways. With its expansive display, high-performance hardware, and versatile connectivity, the Xedge21 offers OEMs and system integrators a powerful, future-ready platform for advanced edge computing.

Xedge21

Key features

  • 21.5’’ TFT color display, resolution 1920x1080 pixel,
    16.7M colors. Dimmable LED backlight
  • Projected capacitive multitouch screen
  • Operating Temperature -20°C to +55°C
  • Protection grade IP66 Front / IP20 Rear
  • 2 Display ports
  • 2 Ethernet 1.0 GbE
  • 2 Ethernet 2.5 GbE
  • 2 USB ports 3.1 gen. 1
  • 2 USB ports 2.0
  • 2 Expansion slot for plug-in modules
  • JMobile Runtime (Optional)
  • Linux or Windows operating system (Optional)

Accessories

Choose your product

Technical Data


System Resources
Display21.5" TFT - 16M colors
Resolution 1920x1080, FHD
Brightness300 cd/m2 typ.
DimmingYes
TouchscreenPCAP, Multitouch
CPUIntel x6000E Series, up to 1.9 GHz
Operating SystemNone, Windows, Linux RT
Flash Storage64 GB eMMC
RAMLPDDR4x up to 16GB
FRAM64 KB
Real time Clock, RTC Back-upYes, VL2330 Lithium battery
BuzzerYes
Leds2 bi-colors
SecurityTPM 2.0
Interface
Display I/O2 Display port 1.2
Ethernet port2 1.0 GbE, 2 2.5 GbE
USB port2 USB 3.1 gen.1, 2 USB 2.0
StorageUp to 1 TB M.2 SATA SSD
Wi-Fi1 Wi-Fi 6 (optional)
Cellular1 LTE (optional)
Expansion2 slots (hw-ready for standard plug-in modules)
Ratings
Power supply24 Vdc (10 to 32 Vdc)
Current Consumption5.3 A max. with expansion modules (full load), Class 2
Input protectionAnti-inversion, Overvoltage, Resettable Fuse
Environment Conditions
Operating Temperature-20°C to +55°C (vertical mounting)
Storage Temperature-20°C to +70°C
Operating/Storage Humidity5-85% RH, non condensing
Protection classIP20
Dimensions and Weights
Faceplate LxH552x347 mm (21.73’’x13.66’’)
Cut-out541x336 mm (21.30’’x13.23’’)
Depth D+T84,5+8,5 mm (3.33’’+0.33’’)
Weight6.8 kg
Approvals
CERadio Equipment Directive 2014/53/EU (RED)
FCCFCC Part 15 Subpart B Class A / FCC Part 15 Subpart C Class A
ICICES-003 ISSUE 7 CLASS A / IC RSS-247 Issue 3 and RSS-Gen Issue 5
ULUL61010-1 / UL61010-2-201

Validated technical specifications of our products are exclusively available in PDF documents named "Datasheet," which can be downloaded from the product page on our website.

Ordering Information

Part Number and Description
Xedge21 Choose your Version 21” Industrial PC, Intel Atom® x6000E Series Dual or Quad Core up to 1.9 GHz
