Xedge15

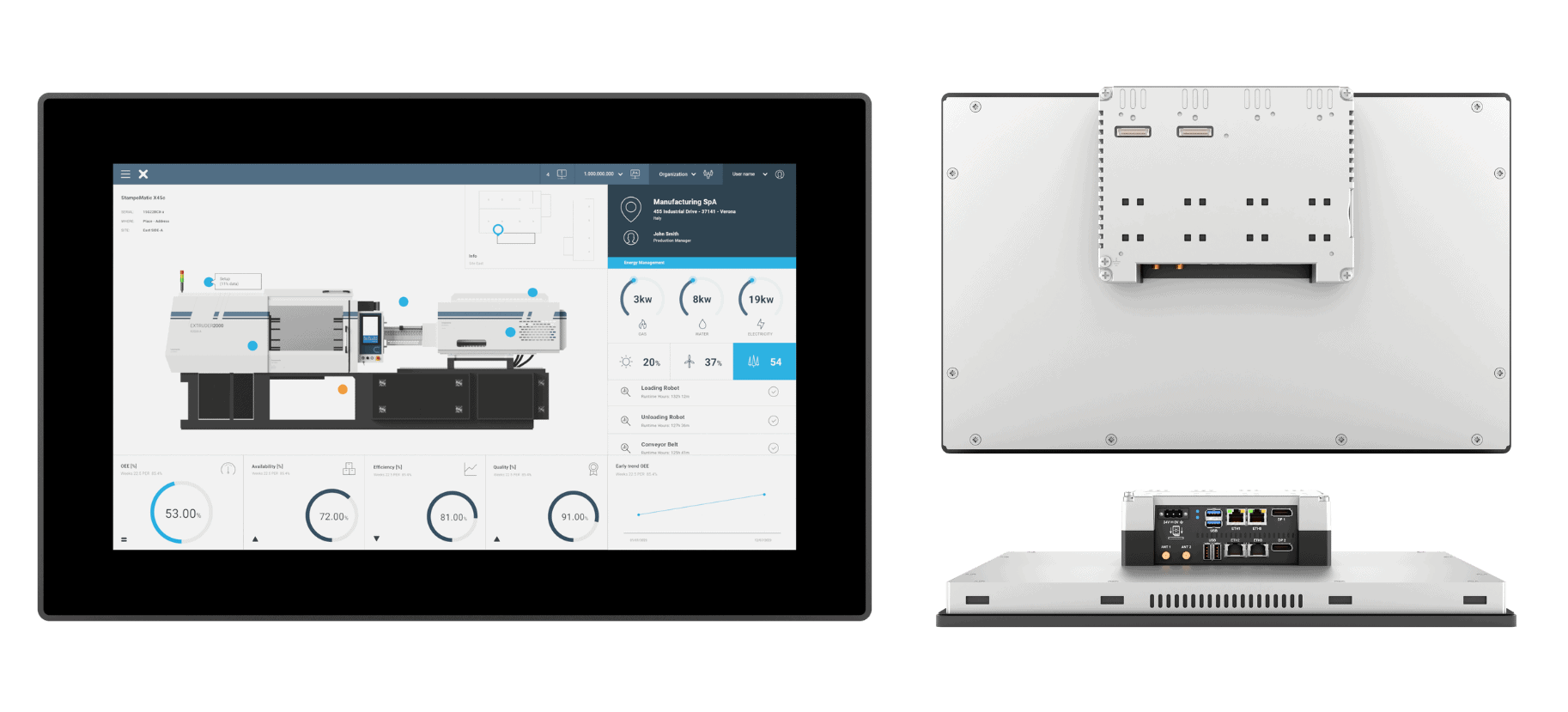

The Xedge15 is a high-performance 15.6" industrial panel PC designed for demanding edge computing applications, combining a full HD multi-touch display with powerful processing, rich connectivity, and robust industrial-grade reliability.

Xedge15

Overview

The Xedge15 brings the power of the Intel® x6000E Series processor (up to 1.9 GHz) to the industrial panel PC market, delivering exceptional performance for real-time data processing, control, and monitoring at the edge. With up to 16 GB of LPDDR4x RAM, 64 GB eMMC flash storage, and optional M.2 SSD expansion up to 1 TB, it is engineered to run complex applications smoothly in challenging industrial environments. The pre-installed Trusted Platform Module (TPM 2.0) ensures enhanced security for mission-critical operations.

Its 15.6" Full HD TFT display with projected capacitive (PCAP) multi-touch technology provides sharp, vibrant visuals and intuitive operation. With a brightness of 350 cd/m², dimming functionality, and support for 16 million colors, the Xedge15 delivers excellent readability and responsiveness across diverse lighting conditions. Dual Display Port outputs, multiple Ethernet ports (including two 2.5 GbE), and versatile USB interfaces offer exceptional connectivity for integration into existing automation systems.

Built for industrial reliability, the Xedge15 operates from -20°C to +55°C in vertical mounting, is protected against voltage inversion and surges, and offers flexible installation via panel cut-out mounting. With optional Wi-Fi 6 and LTE modules, plus expansion slots for standard plug-in hardware, it adapts to a wide range of edge computing applications — from machine control to IIoT data gateways - making it a versatile choice for OEMs and system integrators seeking performance, flexibility, and durability in one device.

Xedge15

Key features

  • 15.6’’ TFT color display, resolution 1920x1080 pixel,
    16.7M colors. Dimmable LED backlight
  • Projected capacitive multitouch screen
  • Operating Temperature -20°C to +55°C
  • Protection grade IP66 Front / IP20 Rear
  • 2 Display ports
  • 2 Ethernet 1.0 GbE
  • 2 Ethernet 2.5 GbE
  • 2 USB ports 3.1 gen. 1
  • 2 USB ports 2.0
  • 2 Expansion slot for plug-in modules
  • JMobile Runtime (Optional)
  • Linux or Windows operating system (Optional)

Accessories

Choose your product

Technical Data


System Resources
Display15.6" TFT - 16M colors
Resolution 1920x1080, FHD
Brightness350 cd/m2 typ.
DimmingYes
TouchscreenPCAP, Multitouch
CPUIntel x6000E Series, up to 1.9 GHz
Operating SystemNone, Windows, Linux RT
Flash Storage64 GB eMMC
RAMLPDDR4x up to 16GB
FRAM64 KB
Real time Clock, RTC Back-upYes, VL2330 Lithium battery
BuzzerYes
Leds2 bi-colors
SecurityTPM 2.0
Interface
Display I/O2 Display port 1.2
Ethernet port2 1.0 GbE, 2 2.5 GbE
USB port2 USB 3.1 gen.1, 2 USB 2.0
StorageUp to 1 TB M.2 SATA SSD
Wi-Fi1 Wi-Fi 6 (optional)
Cellular1 LTE (optional)
Expansion2 slots (hw-ready for standard plug-in modules)
Ratings
Power supply24 Vdc (10 to 32 Vdc)
Current Consumption3.7 A max. with expansion modules (full load), Class 2
Input protectionAnti-inversion, Overvoltage, Resettable Fuse
Environment Conditions
Operating Temperature-20°C to +55°C (vertical mounting)
Storage Temperature-20°C to +70°C
Operating/Storage Humidity5-85% RH, non condensing
Protection classIP20
Dimensions and Weights
Faceplate LxH422x267 mm (16.61’’x10.51’’)
Cut-out411x256mm (16.18’’x10.08’’)
Depth D+T84.5+8.5 mm (3.33’’+0.33’’)
Weight4.8 kg
Approvals
CERadio Equipment Directive 2014/53/EU (RED)
FCCFCC Part 15 Subpart B Class A / FCC Part 15 Subpart C Class A
ICICES-003 ISSUE 7 CLASS A / IC RSS-247 Issue 3 and RSS-Gen Issue 5
ULUL61010-1 / UL61010-2-201

Validated technical specifications of our products are exclusively available in PDF documents named "Datasheet," which can be downloaded from the product page on our website.

Ordering Information

Part Number and Description
Xedge15 Choose your Version 15.6” Industrial PC, Intel Atom® x6000E Series Dual or Quad Core up to 1.9 GHz


Validated technical specifications of our products are exclusively available in PDF documents named "Datasheet," which can be downloaded from the product page on our website.
