eCCF106-A02

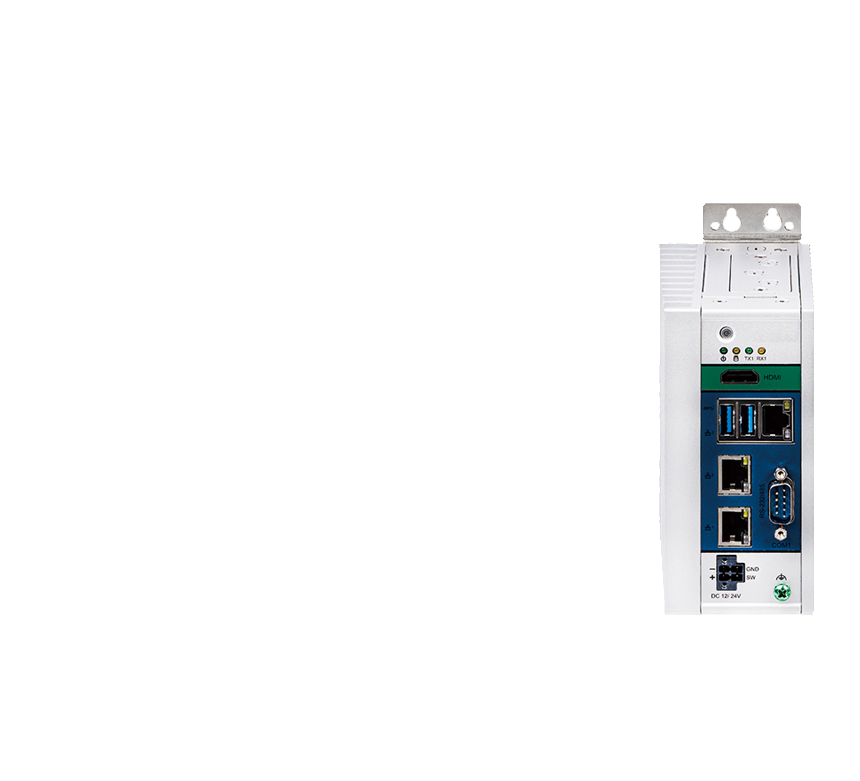

Introducing the eCCF106-A02: a compact and efficient solution for entry-level automation. It is equipped with an Intel® Processor N97, 8GB LPDDR5-4800 memory, and 64GB eMMC storage for optimal performance.

eCCF106-A02

Overview

The device offers great integration flexibility with three LAN ports, two RS-232/485 COM ports, and two USB 3.2 Gen2 ports. Additionally, it includes mSATA storage, USB-C, 4-channel isolated digital I/O, and slots for mPCIe and M.2, making it suitable for complex setups.

It features onboard TPM 2.0 for security and complies with industrial standards EN 61000-6-2 and EN 61000-6-4. The eCCF106-A02 is easy to mount on a DIN-rail and operates in temperatures from -10°C to 60°C, making it perfect for industrial automation.

Key features

  • Onboard Intel® Processor N97 Quad Core processor 2.0GHz
  • 1 x HDMI® display
  • 3 x Intel® I226-IT 2.5GbE LAN port; supports WoL, teaming and PXE
  • 2 x USB 3.2 Gen2, 1 x USB-C (5V/3A, can support up to 15W)
  • 4-Channel Isolated Digital I/O (4 In/4 Out)
  • 2 x RS-232/485 with auto flow control (TX, RX, CTX, RTX), supports
  • 2.5KV isolation protection
  • Onboard TPM 2.0
  • 1 x Mini PCIe full-size (PCIe x1, USB 2.0, SATA, SIM)
  • 1 x M.2 2242/3052 Key B (PCIe x1, SATA, USB 3.0, SIM)
  • Support -10°C to 60°C operating temperature
  • Support typical +12/24VDC ±20%

Choose your product

Ordering Information

Part Number and Description
eCCF106-A02 Contact Your Local Sales

Validated technical specifications of our products are exclusively available in PDF documents named "Datasheet," which can be downloaded from the product page on our website.
