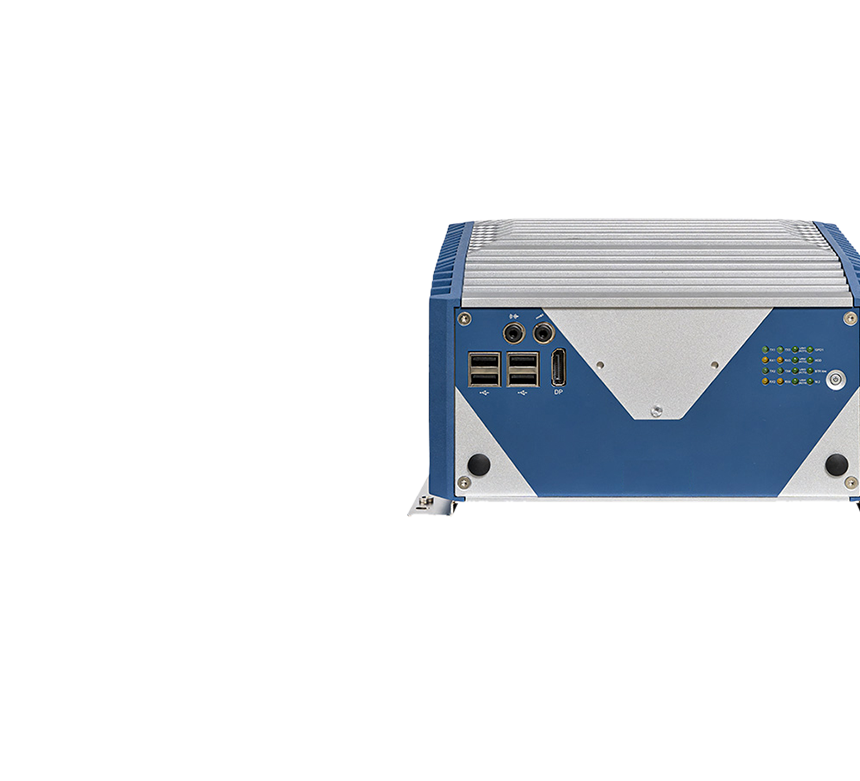

eCC3910P2

The eCC3910 series, equipped with 12th and 13th Gen Intel® Core™ i9/i7/i5/i3 processors, is a fanless PC ideal for industrial automation and edge computing, offering high CPU and graphics performance.

eCC3910P2

Overview

eCC3910P2 supports up to 64GB of DDR5 memory and provides various storage options, including M.2, HDD, SSD, and mSATA.

The series accommodates a wide DC input range from +12V to 30V and operates in temperatures from -20°C to 60°C. For enhanced connectivity, it features an internal mini-PCIe socket for IoT wireless applications, supporting optional Wi-Fi, 3.5G, 4G LTE, and 5G modules via M.2 Key B.

Key features

  • Support 13/12th Gen Intel® Core™ i9/i7/i5/i3 processor (LGA1700)
  • Intel® Q670E
  • 2 x DDR5 4800 SO-DIMM, up to 64GB
  • 4 x 2.5GbE RJ45 port, Intel® I226-IT, supports WoL, teaming, and PXE
  • 1 x DP, 1 x HDMI, and 1 x VGA with independent display
  • 1 x M.2 Key B 3042/3052, supports LTE/5G module
  • 1 x M.2 Key M 2242 with PCIe x4, supports NVMe, outside accessible
  • 6 x USB 3.2 Gen 1, 4 x USB 2.0
  • 2 x Isolated RS232/422/485 with auto-flow and 2 x RS232
  • 1 x mini-PCIe slot, supports optional Wi-Fi, 3.5G, 4G LTE
  • 1 x 2.5” SATA 3.0 HDD/SSD, an additional 2.5” tray available upon request
  • TPM 2.0

Choose your product

Ordering Information

Part Number and Description
eCC3910P2 Contact Your Local Sales


Validated technical specifications of our products are exclusively available in PDF documents named "Datasheet," which can be downloaded from the product page on our website.
