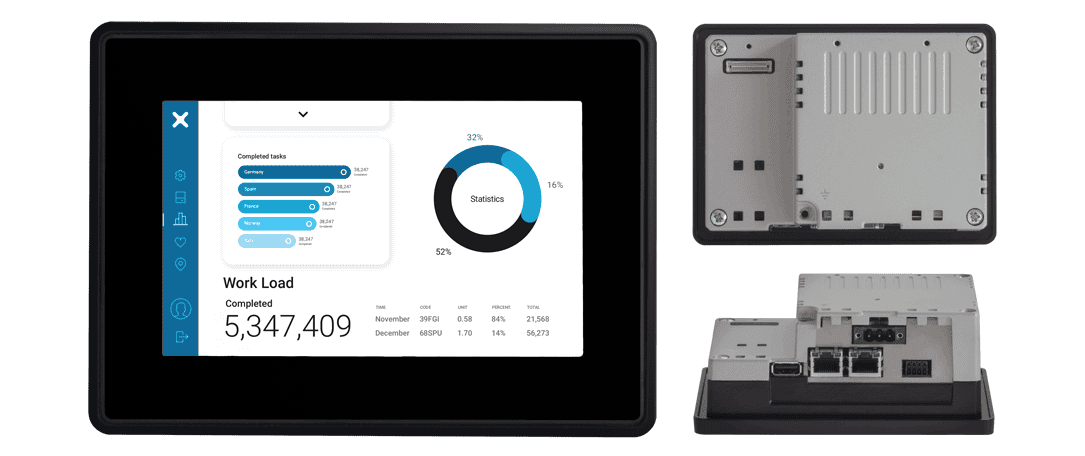

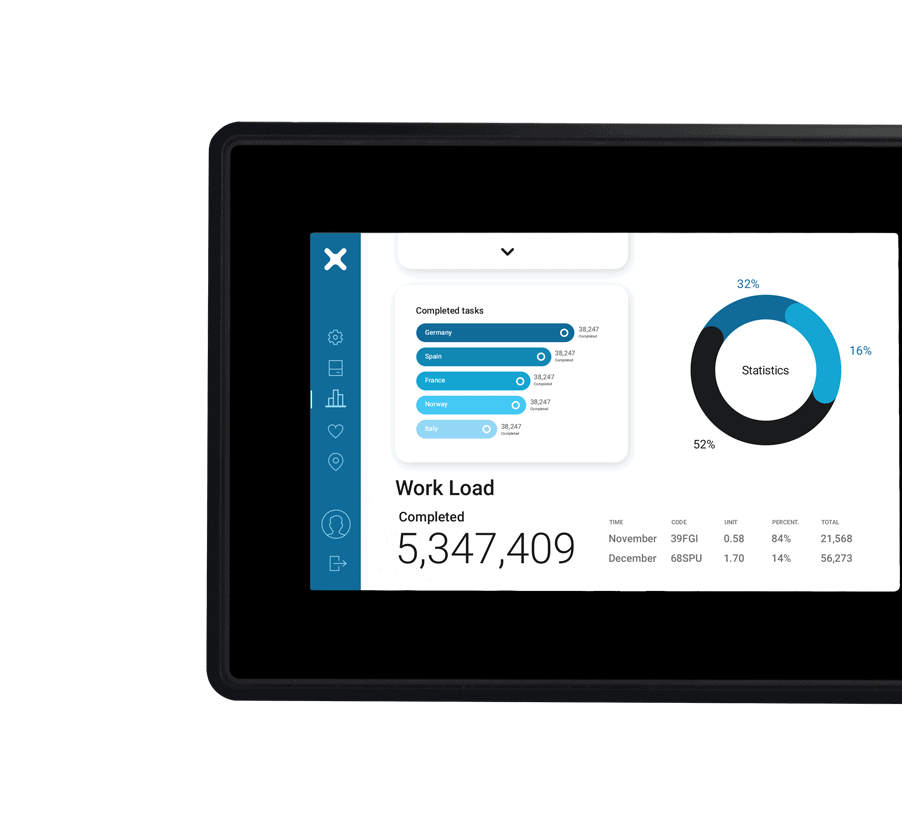

eX705M
The eX705M combines robust performance with outstanding visual quality in a compact and durable design. Powered by a 64-bit quad-core CPU and equipped with a 5" TFT widescreen display, the device is designed to deliver optimal performance for advanced JMobile applications.
Featuring a projected capacitive glass touchscreen with multitouch support, the eX705M offers a highly intuitive user experience. With certifications like IECEx, ATEX, and cULus Class 1 Div 2, and an operating temperature range from -20°C to +60°C, it is the ideal choice for demanding industrial, marine, and building automation environments where reliability and power at the edge are essential.
Overview
The eX705M is part of the high-performance eX700M Series, engineered to meet the growing demands of IIoT edge applications. Its powerful 64-bit quad-core CPU ensures that JMobile 4.5 applications run seamlessly, leveraging enhanced graphical and security features alongside extensive communication capabilities like OPC UA Client/Server and MQTT.
Designed for excellence in usability and optical performance, the eX705M features a brilliant 5-inch TFT color display with 800x480 pixel resolution and a dimmable LED backlight. The projected capacitive glass touchscreen supports multitouch gestures, enabling the creation of natural, intuitive human-machine interfaces.
Built to withstand challenging environments, the eX705M operates reliably across a wide temperature range (-20°C to +60°C) and is certified for hazardous locations (IECEx, ATEX, cULus Class 1 Div 2). Additionally, pSLC technology enhances flash memory reliability, making it an optimal solution for mission-critical applications.
The eX705M is the ultimate choice for powerful, intuitive, and secure human-machine interaction in the most demanding edge and IIoT environments.
Key features
- 5" TFT color display, 800x480 pixel resolution
- Dimmable LED backlight for adaptable brightness
- Projected capacitive touchscreen with true glass design and multitouch operation
- 64-bit quad-core CPU for high-performance processing
- pSLC mode for enhanced flash memory reliability
- Wide operating temperature range: -20°C to +60°C
- Certified for hazardous environments: IECEx, ATEX, cULus Class 1 Div 2
- Supports advanced communication standards: OPC UA, MQTT
- Optimized for JMobile 4.5 graphical and security features
Accessories
Wi-Fi, GNSS
Choose your product
Technical Data
| System Resources | |
|---|---|
| Display - Colors | 5“ TFT 16:9 LED - 64K |
| Resolution | 800x480, WVGA |
| Brightness | 300 Cd/m2 typ. |
| Dimming | Yes |
| Touchscreen | True Glass Projected Capacitive, Multitouch |
| CPU | 64-bit RISC quad core - 1.6 GHz |
| Operating System | Linux |
| Flash | 4 GB (eMMC pSLC) |
| RAM | 2 GB |
| FRAM | 64 KB |
| RT-Clock, RTCBack-up, Buzzer | Yes |
| Interface | |
| Ethernet port | 2 (port 0 - 10/100, port 1 - 10/100) |
| USB port | 1 (Host V2.0, max. 500 mA) |
| Serial port | 1 (RS-232, RS-485, RS-422, software configurable) Max 2 serial ports using plug-in modules. |
| SD card | Yes |
| Expansion | 1 slot for plug in modules |
| Ratings | |
| Power supply | 24 Vdc (10 to 32 Vdc) |
| Current Consumption | 0.57A at 24 Vdc (max.) |
| Input Protection | Electronic |
| Battery | Rechargeable Lithium battery, not user-replaceable |
| Environment Conditions | |
| Operating Temperature | -20° to +60 °C (vertical installation). Plug-in modules and USB devices may limit max temperature to +50 °C |
| Storage Temperature | -20°C to +70°C |
| Operating / Storage Humidity | 5-85% RH, non condensing |
| Conformal Coating | Yes, printed circuit boards |
| Protection Class | IP66 (front), IP20 (rear) - Type: 12, 4X |
| Dimensions and Weights | |
| Faceplate LxH | 147x107 mm (5.78x4.21“) |
| Cutout AxB | 136x96 mm (5.35x3.78“) |
| Depth D+T | 52+8 mm (2.40+0.31”) |
| Weight | 0.8 Kg |
| Approvals | |
| CE | Electromagnetic Compatibility Directive 2014/30/EU (EMC) |
| ATEX | Zone 2/22: II 3 G Ex ec IIC T5…T4 Gc, II 3 D Ex tc IIIC T95°C Dc | -20°C ≤ Tamb ≤ +60°C or 0°C ≤ Tamb ≤ +50°C |
| IECEx | Zone 2/22: Ex ec IIC T5…T4 Gc, Ex tc IIIC T95°C Dc | -20°C ≤ Tamb ≤ +60°C or 0°C ≤ Tamb ≤ +50°C |
| UL | cULus: UL61010-1 / UL61010-2-201 |
| UL | cULus: Class 1 Div 2 |
| RCM | Yes |
Validated technical specifications of our products are exclusively available in PDF documents named "Datasheet," which can be downloaded from the product page on our website.
Ordering Information
| Part Number and Description | ||
|---|---|---|
| eX705M | +EX705MU5P1 | HMI 5” TFT 800x480, PCAP Touchscreen, 4 GB Flash Memory, 2x Ethernet Ports, JMobile runtime |
