JSmart 707

JSmart 707 is a 7 inch PoE HMI with dual core CPU and a touchscreen multitouch.

It can be installed in different industrial environment thanks to the dedicated hmi support arm systems.

With full IP67 environmental protection, you can place the product exactly where the operator needs to use it, without costly cabinet installation.

The addition of Wi-Fi acts as if a second Ethernet port.

JSmart 707


JSmart707 is a 7 inch HMI display for field installation in industrial areas.

High-resolution display with PCAP multitouch screen with a robust glass front; touchscreen/display bonding for fidget optical performance.

Power-over-Ethernet (PoE) for maximum simplicity of connection using standard CAT5 wiring.

The availability of a WiFi interface enhances the device integration.

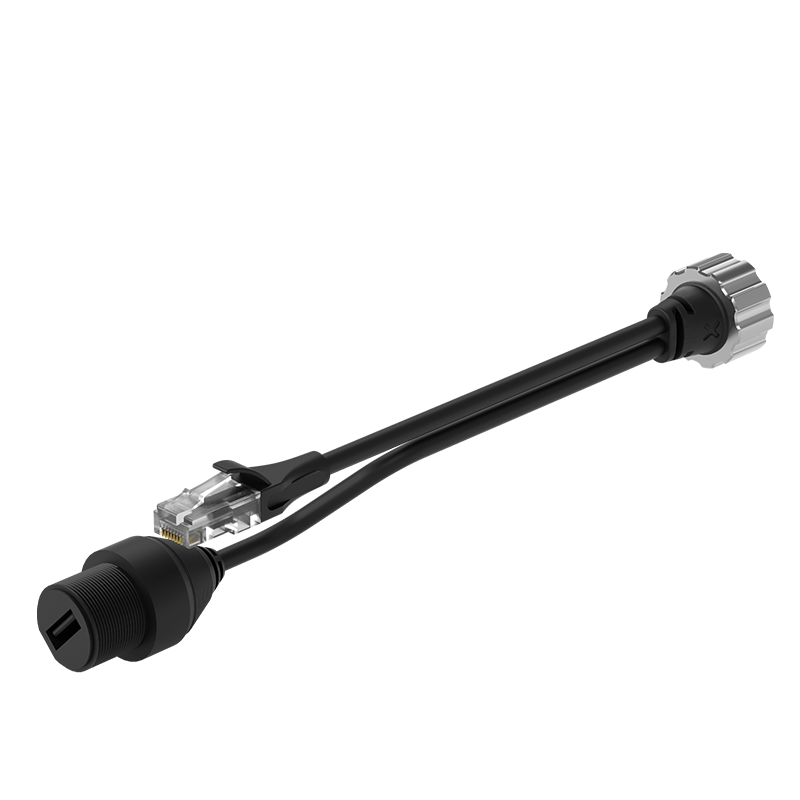

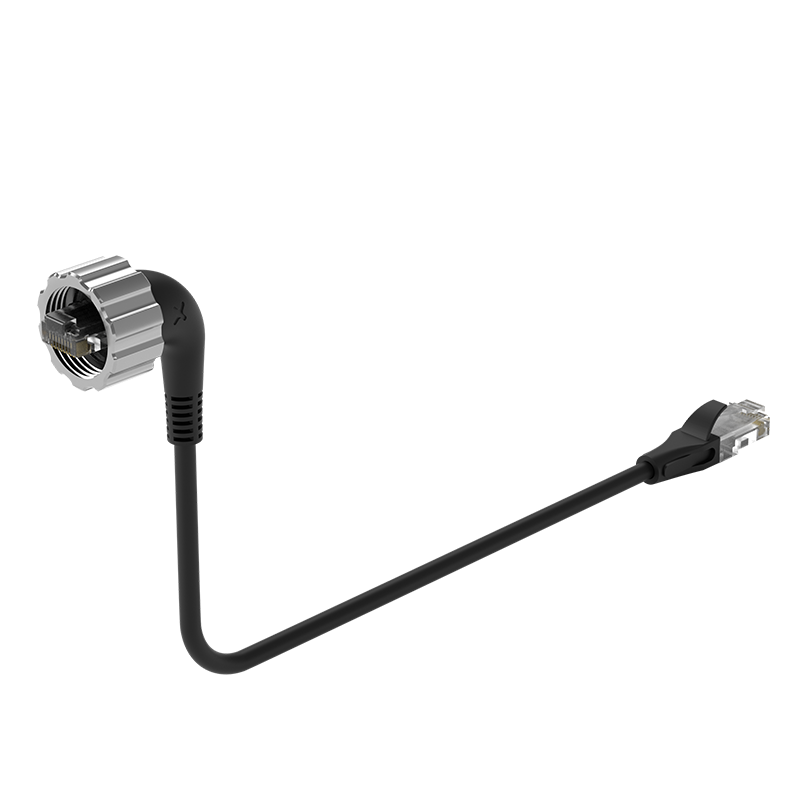

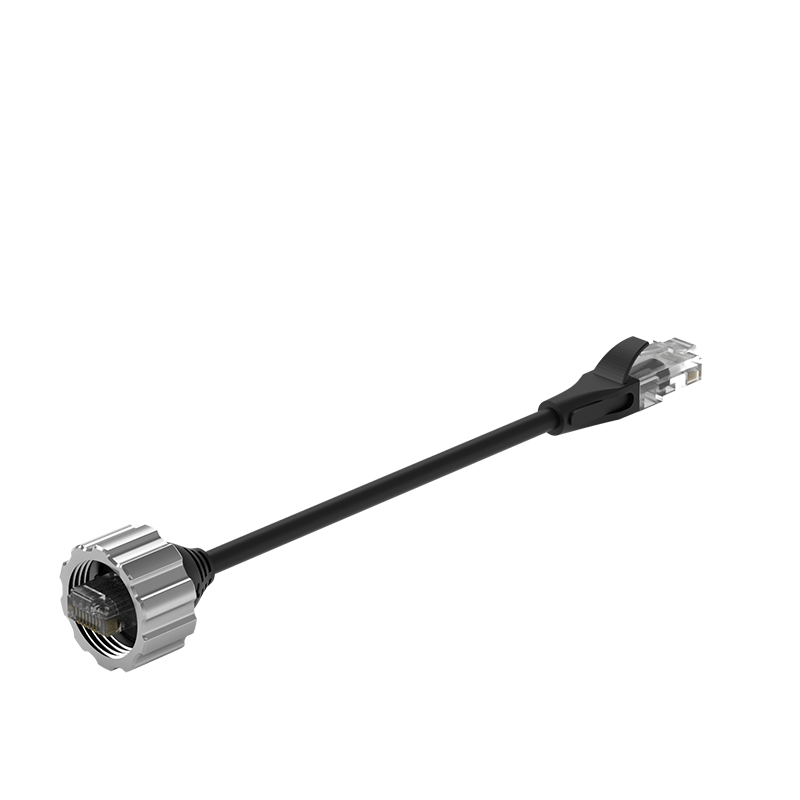

Full IP67 protection with the use of dedicated connectors for the maximum flexibility of installation, from mounting arm to a simple M22 hole.

The product includes a full set of environment and motion sensors to make this device a true IIoT edge device for Industry 4.0 applications.

The JSmart product family has been optimized for use as a JMobile HMI device.

JSmart 707

Key features

  • 7 inch PCAP Touchscreen Display
  • Resolution 1024x600 pixel,
  • 16M colors, dimmable backlight
  • 10/100 Ethernet port PoE
  • Wi-Fi Connection
  • Full IP67 protection
  • Dedicated HMI support arm system
  • Includes environment and motion sensors
  • JMobile runtime with OPC UA Server and Client
  • Optional CODESYS V3 PLC for integrated HMI and control applications
  • Built-in sensors (temperature and acceleration)
  • Open platform for Linux applications


Choose your product

Technical Data

System Resources
Display - Colors7” TFT – 16M
Brightness400 cd/m2 typ.
Dimmingto 0%
TouchscreenProjected Capacitive – Multitouch
CPU32-bit RISC dual core - 800 MHz
Operating systemLinux RT
Flash4 GB
RTClock, RTC Back-upYes
Ethernet port10/100 PoE
USB port1 (Host V2.0, max. 50 mA, available with special cable)
SensorsTemperature, 3-Axis Accelerometer
Wi-FiIEEE 802.11a/b/g
Power supplyIEEE 802.3af PoE
Power Consumption12 W max.
BatteryYes (rechargeable)
Environment Conditions
Operating Temp-20° to +55° C (vertical installation)
Storage Temp-30°C to +80°C
Operating / Storage Humidity5-85% RH, non-condensing
Protection ClassIP67 (requires appropriate accessories and cables) - Type: 1, 12, 4x
Dimensions and Weights
Faceplate LxH195.2x131.6 mm (7.68x5.18”)
Depth D+T+T16.5 mm (0.06”)
Weight0.7 Kg
CERadio Equipment Directive 2014/53/EU (RED)
ULcULus: UL61010-1 / UL61010-2-201
ULcULus: Class 1 Div 2

Ordering Information

Part Number and Description
+JS707BB1U5P1HMI 7" TFT, 1024x600, PCAP Touch, 4GB Flash memory, PoE Ethernet + Wi-Fi , JMobile runtime
